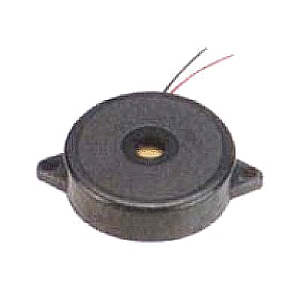

• ZB-PT-3005L Shape size: Φ30 × h5.5

    ZB-PT-3005L Shape size: Φ30 × h5.5

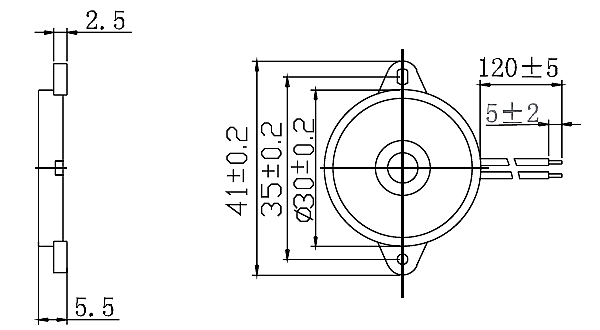

    Dimensions:

    • UNIT: mm
    • Tolerance: ±0.5mm

    PDF

ZB-PT-3005L Shape size: Φ30 × h5.5
請勾選 以下產品，並於此頁下方按鈕點選 加入詢價清單 以詢價.
Part No. Rated Voltage (V) Operating Voltage (V) *Rated Current(MAX) (mA) *Min Sound Output at 10cm (dB) *Resonant Frequency (Hz) Capacitance at 120KHz (pF) Lead Wire

ZB-PT-3005L-03

3 (Sin Wave)

1-30

1

85 (at 4 Hk)

4000±500

25000±30%

UL 1095 AWG28

ZB-PT-3005L-05

9 (Square Wave)

1-30

3

88 (at 3.5 Hk)

3500±500

20000±30%

UL 1095 AWG28

ZB-PT-3005L-12

12 (Square Wave)

1-30

3.5

85 (at 1.3 Hk)

1300±500

45000±30%

UL 1095 AWG28
