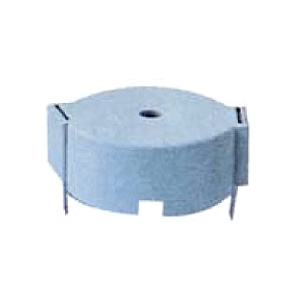

• ZB-PT-2309 Shape size: Φ22.5 × h9.0

    ZB-PT-2309 Shape size: Φ22.5 × h9.0

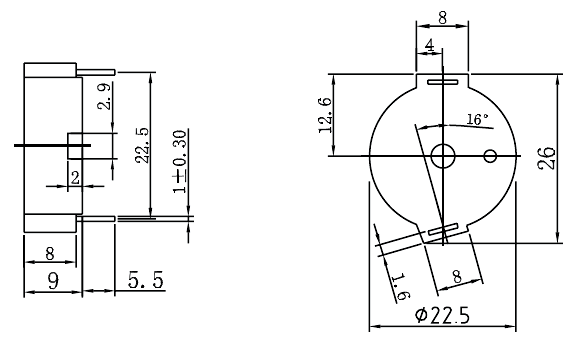

    Dimensions:

    • UNIT: mm
    • Tolerance: ±0.5mm

    PDF

ZB-PT-2309 Shape size: Φ22.5 × h9.0
請勾選 以下產品，並於此頁下方按鈕點選 加入詢價清單 以詢價.
Part No. Rated Voltage (Square Wave)(Vp-p) Operating Voltage (Vp-p) *Rated Current(MAX) (mA) *Min Sound Output at 2.048KHz / 10cm *Resonant Frequency (Hz) Capacitance at 120Hz (pF) Lead Pin Material

ZB-PT-2309

10

1-30

3.5

85

2048±500

24000±30%

Phosphor Bronze
