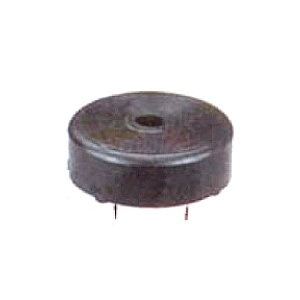

• ZB-PT-2207 Shape size: Φ22 × h7.0

    ZB-PT-2207 Shape size: Φ22 × h7.0

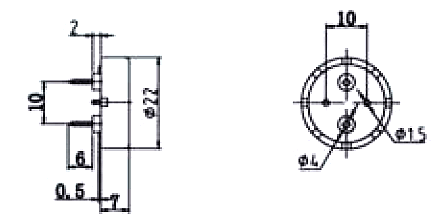

    Dimensions:

    • UNIT: mm
    • Tolerance: ±0.5mm

    PDF

ZB-PT-2207 Shape size: Φ22 × h7.0
請勾選 以下產品，並於此頁下方按鈕點選 加入詢價清單 以詢價.
Part No. Rated Voltage (Square Wave)(Vp-p) Operating Voltage (Vp-p) *Rated Current(MAX) (mA) *Min Sound Output at 4.0KHz / 10cm (dB) *Resonant Frequency (Hz) Capacitance at 120KHz (pF) Lead Pin Material

ZB-PT-2207-03

3

1-30

1

80

4000±500

15000±30%

Phosphor Bronze

ZB-PT-2207-09

9

1-30

3

85

4000±500

15000±30%

Phosphor Bronze
