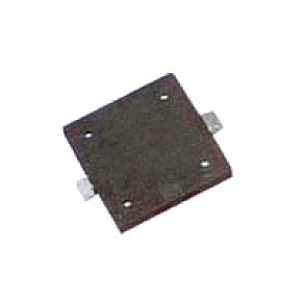

• ZB-PT-1603T Shape size: 16 × .16 × h2.5

    ZB-PT-1603T Shape size: 16 × .16 × h2.5

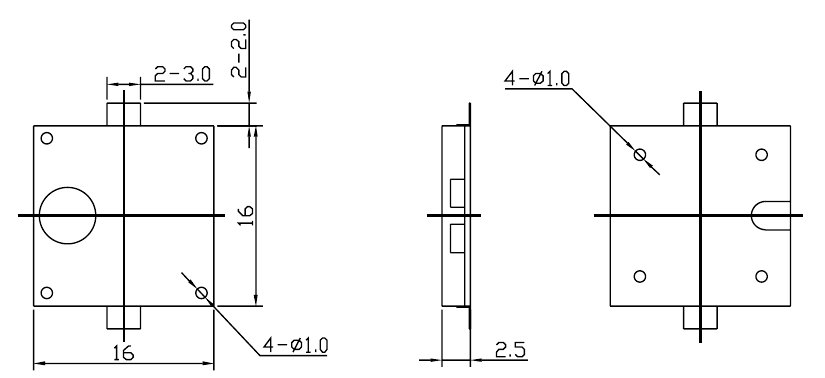

    Dimensions:

    • UNIT: mm
    • Tolerance: ±0.5mm
    • Reflow Solderable and Washable

    PDF

ZB-PT-1603T Shape size: 16 × .16 × h2.5
請勾選 以下產品，並於此頁下方按鈕點選 加入詢價清單 以詢價.
Part No. Rated Voltage (Square Wave)(Vp-p) Operating Voltage(Vp-p) *Rated Current(MAX) (mA) *Min Sound Output at 10 cm (dB) *Resonant Frequency (Hz) Capacitance at 120Hz Lead Pin Material

ZB-PT-1603T

3

1-25

1

70

4000±500

14000±30%

Ni-alloy
